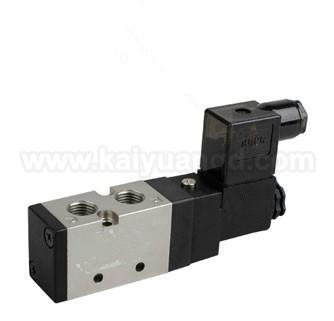

K4V410-15 K4V420-15 K4V430C-15 K4V430E-15 K4V430P-15 雙電控制換向閥 三位置分中封式電磁閥

雙電控制換向閥 三位置分中封式電磁閥

K4V410-15 K4V420-15 K4V430C-15 K4V430E-15 K4V430P-15

雙電控制，三位置分中封式，中泄式，中壓式

馬上詢價

K4V410-15 K4V420-15 K4V430C-15 K4V430E-15 K4V430P-15 詳細介紹

Model 4V210-06 4V220-06 4V230C-06 4V230E-06 4V230P-06 4V210-08 4V220-08 4V230C-08 4V230E-08 4V230P-08
4A210-06 4A220-06 4A230C-06 4A230E-06 4A230P-06 4A210-08 4A220-08 4A230C-08 4A230E-08 4A230P-08
Position and way NO. 5/2 way 5/3Five-way 5/2 way 5/3 way
Effective area 14mm2(CV=0.78) 12mm2(CV=0.67) 16mm2(CV=0.89) 12mm2(CV=0.67)
Model 3V210-06 3V220-06 3A210-06 3A220-06 3V210-08 3V220-08 3A210-08 3A220-08
Position and way NO. 3/2 way 3/2 way
Effective area 14mm2(CV=0.78) 16mm2(CV=0.89)
Port size Air inlet=Air outlet=Exhaust=G1/8″ Air inlet=Air outlet=G1/4″ Exhaust=G1/8″
Fluid 40 micron fi ltered air
Operation Inside pilot type
Operating pressure 0.15~0.8MPa
Max. proof pressure 1.2MPa
Temperature 5~50oC
Allowable voltage ±10% of rated voltage
Power consumption AAC: 4.5VA DC: 3W
Coil insulation & protection grade Class F.IP65
Electrical entry Lead wire or connector
Highest action frequency 5 cycle/second
Shortest excitation time 0.05 second
Model 4V210-06 4V220-06 4V230C-06 4V230E-06 4V230P-06 4V210-08 4V220-08 4V230C-08 4V230E-08 4V230P-08
4A210-06 4A220-06 4A230C-06 4A230E-06 4A230P-06 4A210-08 4A220-08 4A230C-08 4A230E-08 4A230P-08
Position and way NO. 5/2 way 5/3Five-way 5/2 way 5/3 way
Effective area 14mm2(CV=0.78) 12mm2(CV=0.67) 16mm2(CV=0.89) 12mm2(CV=0.67)
Model 3V210-06 3V220-06 3A210-06 3A220-06 3V210-08 3V220-08 3A210-08 3A220-08
Position and way NO. 3/2 way 3/2 way
Effective area 14mm2(CV=0.78) 16mm2(CV=0.89)
Port size Air inlet=Air outlet=Exhaust=G1/8″ Air inlet=Air outlet=G1/4″ Exhaust=G1/8″
Fluid 40 micron fi ltered air
Operation Inside pilot type
Operating pressure 0.15~0.8MPa
Max. proof pressure 1.2MPa
Temperature 5~50oC
Allowable voltage ±10% of rated voltage
Power consumption AAC: 4.5VA DC: 3W
Coil insulation & protection grade Class F.IP65
Electrical entry Lead wire or connector
Highest action frequency 5 cycle/second
Shortest excitation time 0.05 second
